いつもたいへんお世話になっているボンタさんの LCD-8000U @ 玄柴(Debian) で、DisplayLink の Xsererver用ドライバがあることを知った。
yasunari@vl:~$ cd /mnt/src/ yasunari@vl:/mnt/src$ ls build linux-2.6.31.8 linux-2.6.31.8.tar.bz2 udlfb yasunari@vl:/mnt/src$ git clone http://git.plugable.com/webdav/xf-video-udlfb Cloning into xf-video-udlfb... yasunari@vl:/mnt/src$ ls build linux-2.6.31.8 linux-2.6.31.8.tar.bz2 udlfb xf-video-udlfb yasunari@vl:/mnt/src$
yasunari@vl:/mnt/src$ cd xf-video-udlfb/ yasunari@vl:/mnt/src/xf-video-udlfb$ ./configure checking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yes checking for a thread-safe mkdir -p... /bin/mkdir -p checking for gawk... no checking for mawk... mawk checking whether make sets $(MAKE)... yes checking whether to enable maintainer-specific portions of Makefiles... no checking build system type... armv5tel-unknown-linux-gnueabi checking host system type... armv5tel-unknown-linux-gnueabi checking for style of include used by make... GNU checking for gcc... gcc checking for C compiler default output file name... a.out checking whether the C compiler works... yes checking whether we are cross compiling... no checking for suffix of executables... checking for suffix of object files... o checking whether we are using the GNU C compiler... yes checking whether gcc accepts -g... yes checking for gcc option to accept ISO C89... none needed checking dependency style of gcc... gcc3 checking for a sed that does not truncate output... /bin/sed checking for grep that handles long lines and -e... /bin/grep checking for egrep... /bin/grep -E checking for fgrep... /bin/grep -F checking for ld used by gcc... /usr/bin/ld checking if the linker (/usr/bin/ld) is GNU ld... yes checking for BSD- or MS-compatible name lister (nm)... /usr/bin/nm -B checking the name lister (/usr/bin/nm -B) interface... BSD nm checking whether ln -s works... yes checking the maximum length of command line arguments... 1572864 checking whether the shell understands some XSI constructs... yes checking whether the shell understands "+="... yes checking for /usr/bin/ld option to reload object files... -r checking for objdump... objdump checking how to recognize dependent libraries... pass_all checking for ar... ar checking for strip... strip checking for ranlib... ranlib checking command to parse /usr/bin/nm -B output from gcc object... ok checking how to run the C preprocessor... gcc -E checking for ANSI C header files... yes checking for sys/types.h... yes checking for sys/stat.h... yes checking for stdlib.h... yes checking for string.h... yes checking for memory.h... yes checking for strings.h... yes checking for inttypes.h... yes checking for stdint.h... yes checking for unistd.h... yes checking for dlfcn.h... yes checking for objdir... .libs checking if gcc supports -fno-rtti -fno-exceptions... no checking for gcc option to produce PIC... -fPIC -DPIC checking if gcc PIC flag -fPIC -DPIC works... yes checking if gcc static flag -static works... yes checking if gcc supports -c -o file.o... yes checking if gcc supports -c -o file.o... (cached) yes checking whether the gcc linker (/usr/bin/ld) supports shared libraries... yes checking whether -lc should be explicitly linked in... no checking dynamic linker characteristics... GNU/Linux ld.so checking how to hardcode library paths into programs... immediate checking whether stripping libraries is possible... yes checking if libtool supports shared libraries... yes checking whether to build shared libraries... yes checking whether to build static libraries... no checking for gcc... (cached) gcc checking whether we are using the GNU C compiler... (cached) yes checking whether gcc accepts -g... (cached) yes checking for gcc option to accept ISO C89... (cached) none needed checking dependency style of gcc... (cached) gcc3 checking if RANDR is defined... no checking if RENDER is defined... no checking if XV is defined... no checking for pkg-config... /usr/bin/pkg-config checking pkg-config is at least version 0.9.0... yes checking for XORG... configure: error: Package requirements (xorg-server >= 1.0.99.901 xproto fontsproto ) were not met: No package 'xorg-server' found No package 'xproto' found No package 'fontsproto' found Consider adjusting the PKG_CONFIG_PATH environment variable if you installed software in a non-standard prefix. Alternatively, you may set the environment variables XORG_CFLAGS and XORG_LIBS to avoid the need to call pkg-config. See the pkg-config man page for more details. yasunari@vl:/mnt/src/xf-video-udlfb$xorg-server, xproto, fontsproto パッケージが必要と
yasunari@vl:/mnt/src/xf-video-udlfb$ apt-cache search xorg-server yasunari@vl:/mnt/src/xf-video-udlfb$ apt-cache search xproto x11proto-core-dev - X11 core wire protocol and auxiliary headers x11proto-dmx-dev - X11 Distributed Multihead X extension wire protocol yasunari@vl:/mnt/src/xf-video-udlfb$ apt-cache search fontsproto yasunari@vl:/mnt/src/xf-video-udlfb$どれもない。
困った
検索すると、、、pkg-config が要ると。
LCD-8000U @ 玄柴(Debian)
にも書いてあった。
pkg-config をインストールする
yasunari@vl:/mnt/src/xf-video-udlfb$ apt-cache search pkg-config connman-dev - Development files for connman libextutils-pkgconfig-perl - simplistic perl interface to pkg-config libgctp-dev - General Cartographic Transformation Package - development files libidn11-dev - Development files for GNU Libidn, an IDN library libpthread-stubs0-dev - pthread stubs not provided by native libc, development files osso-af-settings - pkg-config based registry for maemo directories pkg-config - manage compile and link flags for libraries xserver-xorg-dev - Xorg X server - development files yasunari@vl:/mnt/src/xf-video-udlfb$ apt-get install pkg-config E: Could not open lock file /var/lib/dpkg/lock - open (13: Permission denied) E: Unable to lock the administration directory (/var/lib/dpkg/), are you root? yasunari@vl:/mnt/src/xf-video-udlfb$ sudo !! sudo apt-get install pkg-config [sudo] password for yasunari: Reading package lists... Done Building dependency tree Reading state information... Done pkg-config is already the newest version. pkg-config set to manually installed. 0 upgraded, 0 newly installed, 0 to remove and 12 not upgraded. yasunari@vl:/mnt/src/xf-video-udlfb$
yasunari@vl:/mnt/src/xf-video-udlfb$ ./configure checking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yes checking for a thread-safe mkdir -p... /bin/mkdir -p checking for gawk... no checking for mawk... mawk checking whether make sets $(MAKE)... yes checking whether to enable maintainer-specific portions of Makefiles... no checking build system type... armv5tel-unknown-linux-gnueabi checking host system type... armv5tel-unknown-linux-gnueabi checking for style of include used by make... GNU checking for gcc... gcc checking for C compiler default output file name... a.out checking whether the C compiler works... yes checking whether we are cross compiling... no checking for suffix of executables... checking for suffix of object files... o checking whether we are using the GNU C compiler... yes checking whether gcc accepts -g... yes checking for gcc option to accept ISO C89... none needed checking dependency style of gcc... gcc3 checking for a sed that does not truncate output... /bin/sed checking for grep that handles long lines and -e... /bin/grep checking for egrep... /bin/grep -E checking for fgrep... /bin/grep -F checking for ld used by gcc... /usr/bin/ld checking if the linker (/usr/bin/ld) is GNU ld... yes checking for BSD- or MS-compatible name lister (nm)... /usr/bin/nm -B checking the name lister (/usr/bin/nm -B) interface... BSD nm checking whether ln -s works... yes checking the maximum length of command line arguments... 1572864 checking whether the shell understands some XSI constructs... yes checking whether the shell understands "+="... yes checking for /usr/bin/ld option to reload object files... -r checking for objdump... objdump checking how to recognize dependent libraries... pass_all checking for ar... ar checking for strip... strip checking for ranlib... ranlib checking command to parse /usr/bin/nm -B output from gcc object... ok checking how to run the C preprocessor... gcc -E checking for ANSI C header files... yes checking for sys/types.h... yes checking for sys/stat.h... yes checking for stdlib.h... yes checking for string.h... yes checking for memory.h... yes checking for strings.h... yes checking for inttypes.h... yes checking for stdint.h... yes checking for unistd.h... yes checking for dlfcn.h... yes checking for objdir... .libs checking if gcc supports -fno-rtti -fno-exceptions... no checking for gcc option to produce PIC... -fPIC -DPIC checking if gcc PIC flag -fPIC -DPIC works... yes checking if gcc static flag -static works... yes checking if gcc supports -c -o file.o... yes checking if gcc supports -c -o file.o... (cached) yes checking whether the gcc linker (/usr/bin/ld) supports shared libraries... yes checking whether -lc should be explicitly linked in... no checking dynamic linker characteristics... GNU/Linux ld.so checking how to hardcode library paths into programs... immediate checking whether stripping libraries is possible... yes checking if libtool supports shared libraries... yes checking whether to build shared libraries... yes checking whether to build static libraries... no checking for gcc... (cached) gcc checking whether we are using the GNU C compiler... (cached) yes checking whether gcc accepts -g... (cached) yes checking for gcc option to accept ISO C89... (cached) none needed checking dependency style of gcc... (cached) gcc3 checking if RANDR is defined... no checking if RENDER is defined... no checking if XV is defined... no checking for pkg-config... /usr/bin/pkg-config checking pkg-config is at least version 0.9.0... yes checking for XORG... configure: error: Package requirements (xorg-server >= 1.0.99.901 xproto fontsproto ) were not met: No package 'xorg-server' found No package 'xproto' found No package 'fontsproto' found Consider adjusting the PKG_CONFIG_PATH environment variable if you installed software in a non-standard prefix. Alternatively, you may set the environment variables XORG_CFLAGS and XORG_LIBS to avoid the need to call pkg-config. See the pkg-config man page for more details. yasunari@vl:/mnt/src/xf-video-udlfb$全然変わっていない。
残りは、xserver-xorg-dev ?
yasunari@vl:/mnt/src/xf-video-udlfb$ sudo apt-get install xserver-xorg-dev Reading package lists... Done Building dependency tree Reading state information... Done The following extra packages will be installed: libpciaccess-dev libpixman-1-dev libpthread-stubs0 libpthread-stubs0-dev libx11-dev libxau-dev libxcb1-dev libxdmcp-dev libxkbfile-dev x11proto-core-dev x11proto-dri2-dev x11proto-fonts-dev x11proto-input-dev x11proto-kb-dev x11proto-randr-dev x11proto-render-dev x11proto-video-dev x11proto-xext-dev xtrans-dev The following NEW packages will be installed: libpciaccess-dev libpixman-1-dev libpthread-stubs0 libpthread-stubs0-dev libx11-dev libxau-dev libxcb1-dev libxdmcp-dev libxkbfile-dev x11proto-core-dev x11proto-dri2-dev x11proto-fonts-dev x11proto-input-dev x11proto-kb-dev x11proto-randr-dev x11proto-render-dev x11proto-video-dev x11proto-xext-dev xserver-xorg-dev xtrans-dev 0 upgraded, 20 newly installed, 0 to remove and 12 not upgraded. Need to get 5569 kB of archives. After this operation, 12.6 MB of additional disk space will be used. Do you want to continue [Y/n]? y : : Setting up x11proto-fonts-dev (2.1.0-1) ... Setting up x11proto-randr-dev (1.3.1-1) ... Setting up x11proto-render-dev (2:0.11-1) ... Setting up x11proto-video-dev (2.3.0-1) ... Setting up x11proto-xext-dev (7.1.1-2) ... Setting up xserver-xorg-dev (2:1.7.7-14) ... !yasunari@vl:/mnt/src/xf-video-udlfb$もう一回 configure
!yasunari@vl:/mnt/src/xf-video-udlfb$ ./configure checking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yes checking for a thread-safe mkdir -p... /bin/mkdir -p checking for gawk... no checking for mawk... mawk checking whether make sets $(MAKE)... yes checking whether to enable maintainer-specific portions of Makefiles... no checking build system type... armv5tel-unknown-linux-gnueabi checking host system type... armv5tel-unknown-linux-gnueabi checking for style of include used by make... GNU checking for gcc... gcc checking for C compiler default output file name... a.out checking whether the C compiler works... yes checking whether we are cross compiling... no checking for suffix of executables... checking for suffix of object files... o checking whether we are using the GNU C compiler... yes checking whether gcc accepts -g... yes checking for gcc option to accept ISO C89... none needed checking dependency style of gcc... gcc3 checking for a sed that does not truncate output... /bin/sed checking for grep that handles long lines and -e... /bin/grep checking for egrep... /bin/grep -E checking for fgrep... /bin/grep -F checking for ld used by gcc... /usr/bin/ld checking if the linker (/usr/bin/ld) is GNU ld... yes checking for BSD- or MS-compatible name lister (nm)... /usr/bin/nm -B checking the name lister (/usr/bin/nm -B) interface... BSD nm checking whether ln -s works... yes checking the maximum length of command line arguments... 1572864 checking whether the shell understands some XSI constructs... yes checking whether the shell understands "+="... yes checking for /usr/bin/ld option to reload object files... -r checking for objdump... objdump checking how to recognize dependent libraries... pass_all checking for ar... ar checking for strip... strip checking for ranlib... ranlib checking command to parse /usr/bin/nm -B output from gcc object... ok checking how to run the C preprocessor... gcc -E checking for ANSI C header files... yes checking for sys/types.h... yes checking for sys/stat.h... yes checking for stdlib.h... yes checking for string.h... yes checking for memory.h... yes checking for strings.h... yes checking for inttypes.h... yes checking for stdint.h... yes checking for unistd.h... yes checking for dlfcn.h... yes checking for objdir... .libs checking if gcc supports -fno-rtti -fno-exceptions... no checking for gcc option to produce PIC... -fPIC -DPIC checking if gcc PIC flag -fPIC -DPIC works... yes checking if gcc static flag -static works... yes checking if gcc supports -c -o file.o... yes checking if gcc supports -c -o file.o... (cached) yes checking whether the gcc linker (/usr/bin/ld) supports shared libraries... yes checking whether -lc should be explicitly linked in... no checking dynamic linker characteristics... GNU/Linux ld.so checking how to hardcode library paths into programs... immediate checking whether stripping libraries is possible... yes checking if libtool supports shared libraries... yes checking whether to build shared libraries... yes checking whether to build static libraries... no checking for gcc... (cached) gcc checking whether we are using the GNU C compiler... (cached) yes checking whether gcc accepts -g... (cached) yes checking for gcc option to accept ISO C89... (cached) none needed checking dependency style of gcc... (cached) gcc3 checking if RANDR is defined... yes checking if RENDER is defined... yes checking if XV is defined... yes checking for pkg-config... /usr/bin/pkg-config checking pkg-config is at least version 0.9.0... yes checking for XORG... yes checking whether xf86ConfigIsaEntity is declared... no checking for ANSI C header files... (cached) yes configure: creating ./config.status config.status: creating Makefile config.status: creating src/Makefile config.status: creating config.h config.status: executing depfiles commands config.status: executing libtool commands yasunari@vl:/mnt/src/xf-video-udlfb$できた！
yasunari@vl:/mnt/src/xf-video-udlfb$ make make all-recursive make[1]: Entering directory `/mnt/src/xf-video-udlfb' Making all in src make[2]: Entering directory `/mnt/src/xf-video-udlfb/src' : : libtool: link: gcc -shared .libs/displaylink.o .libs/displaylink_crtc.o .libs/displaylink_output.o -Wl,-soname -Wl,displaylink_drv.so -o .libs/displaylink_drv.so libtool: link: ( cd ".libs" && rm -f "displaylink_drv.la" && ln -s "../displaylink_drv.la" "displaylink_drv.la" ) make[2]: Leaving directory `/mnt/src/xf-video-udlfb/src' make[2]: Entering directory `/mnt/src/xf-video-udlfb' make[2]: Leaving directory `/mnt/src/xf-video-udlfb' make[1]: Leaving directory `/mnt/src/xf-video-udlfb' yasunari@vl:/mnt/src/xf-video-udlfb$
yasunari@vl:/mnt/src/xf-video-udlfb$ sudo make install
Making install in src
make[1]: Entering directory `/mnt/src/xf-video-udlfb/src'
make[2]: Entering directory `/mnt/src/xf-video-udlfb/src'
make[2]: Nothing to be done for `install-exec-am'.
test -z "/usr/local/lib/xorg/modules/drivers" || /bin/mkdir -p "/usr/local/lib/xorg/modules/drivers"
/bin/bash ../libtool --mode=install /usr/bin/install -c 'displaylink_drv.la' '/usr/local/lib/xorg/modules/drivers/displaylink_drv.la'
libtool: install: /usr/bin/install -c .libs/displaylink_drv.so /usr/local/lib/xorg/modules/drivers/displaylink_drv.so
libtool: install: /usr/bin/install -c .libs/displaylink_drv.lai /usr/local/lib/xorg/modules/drivers/displaylink_drv.la
libtool: finish: PATH="/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/X11R6/bin:/sbin" ldconfig -n /usr/local/lib/xorg/modules/drivers
----------------------------------------------------------------------
Libraries have been installed in:
/usr/local/lib/xorg/modules/drivers
If you ever happen to want to link against installed libraries
in a given directory, LIBDIR, you must either use libtool, and
specify the full pathname of the library, or use the `-LLIBDIR'
flag during linking and do at least one of the following:
- add LIBDIR to the `LD_LIBRARY_PATH' environment variable
during execution
- add LIBDIR to the `LD_RUN_PATH' environment variable
during linking
- use the `-Wl,-rpath -Wl,LIBDIR' linker flag
- have your system administrator add LIBDIR to `/etc/ld.so.conf'
See any operating system documentation about shared libraries for
more information, such as the ld(1) and ld.so(8) manual pages.
----------------------------------------------------------------------
make[2]: Leaving directory `/mnt/src/xf-video-udlfb/src'
make[1]: Leaving directory `/mnt/src/xf-video-udlfb/src'
make[1]: Entering directory `/mnt/src/xf-video-udlfb'
make[2]: Entering directory `/mnt/src/xf-video-udlfb'
make[2]: Nothing to be done for `install-exec-am'.
make[2]: Nothing to be done for `install-data-am'.
make[2]: Leaving directory `/mnt/src/xf-video-udlfb'
make[1]: Leaving directory `/mnt/src/xf-video-udlfb'
yasunari@vl:/mnt/src/xf-video-udlfb$

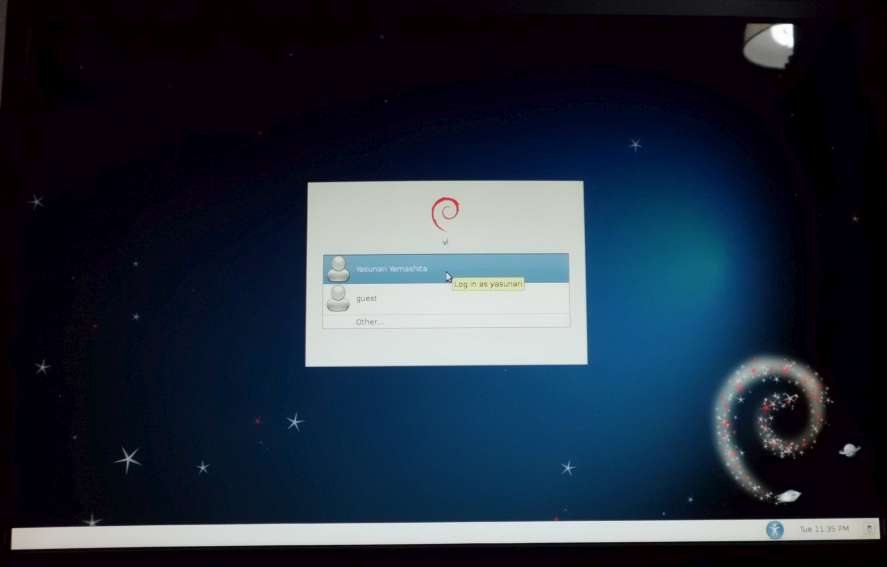

できたか？？？
yasunari@vl:/mnt/src/xf-video-udlfb$ sudo vi /etc/X11/xorg.conf
:
:
yasunari@vl:/mnt/src/xf-video-udlfb$ cat /etc/X11/xorg.conf
Section "Device"
Identifier "dl0"
driver "displaylink"
Option "fbdev" "/dev/fb0"
EndSection
Section "Monitor"
Identifier "monitor0"
EndSection
Section "Screen"
Identifier "screen0"
Device "dl0"
Monitor "monitor0"
EndSection
Section "ServerLayout"
Identifier "Default Layout"
Screen 0 "screen0" 0 0
EndSection
yasunari@vl:/mnt/src/xf-video-udlfb$
